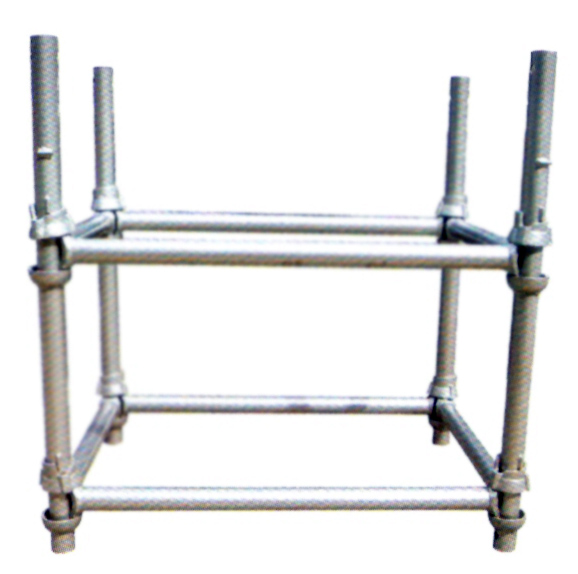

Cup Lock Systems

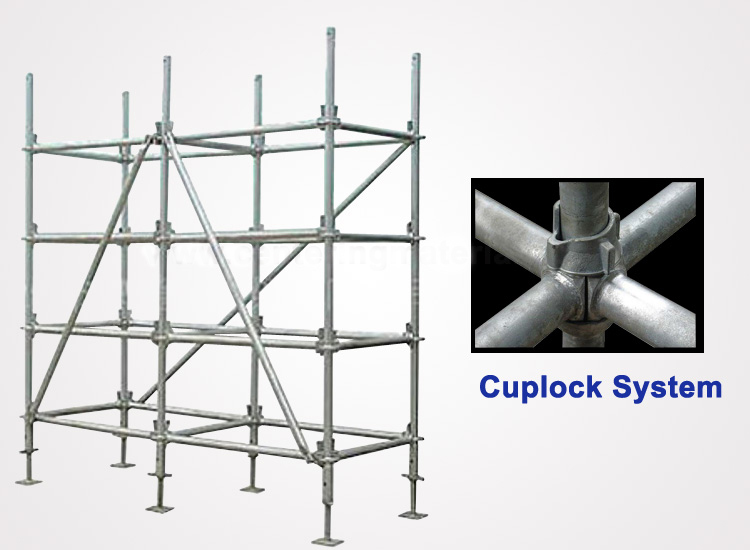

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding .Cup lock Scaffolding for variety of applications just like , Slab, Façade ,Any work of Outer side of building & Plastering Work , Support wall formwork ,demolition and maintenance projects throughout the globe.

Features:

  • Cup lock systems –Erect easy to stand –say no to nuts and bolts or wedges
  • Just a simple locking Top cup allows locking and resists sabotage at each node point on the standards enables connection of the ends of up to four members in one locking action.
  • Cup lock systems – Versatile for staging and access around any structures, best suitable for access or formwork support.
  • It can be erected by unskilled labor. It’s very easy to work, handle it and move very fast.
  • Cup lock Systems –timely tested and proven design with safety accessories cup lock systems has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies.
  • Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid.
  • Quick / fast / solid erection and dismantling result in time and labor saving.
  • Widely and versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved.
  • Lightweight but high loads carrying capacity.
  • Easy to Storage and Staking and Utilizes minimum space and maximum benefit in Transport cost less.

Technical Specification

Type Size

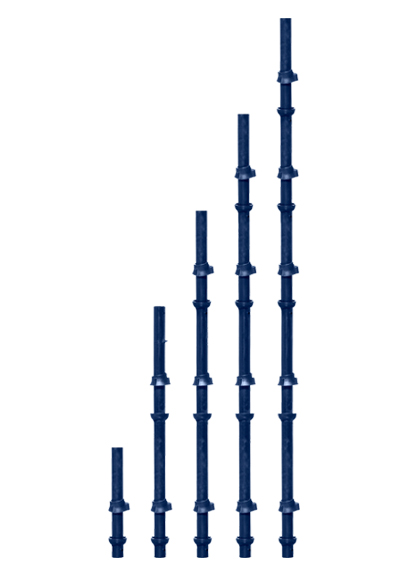

Cup Lock Vertical 3.00
Cup Lock Vertical 2.50
Cup Lock Vertical 2.00
Cup Lock Vertical 1.50
Cup Lock Vertical 1.00
Cup Lock Ledger 2.00
Cup Lock Ledger 1.80
Cup Lock Ledger 1.50
Cup Lock Ledger 1.20
Cup Lock Ledger 0.90
Cup Lock Ledger 0.60
